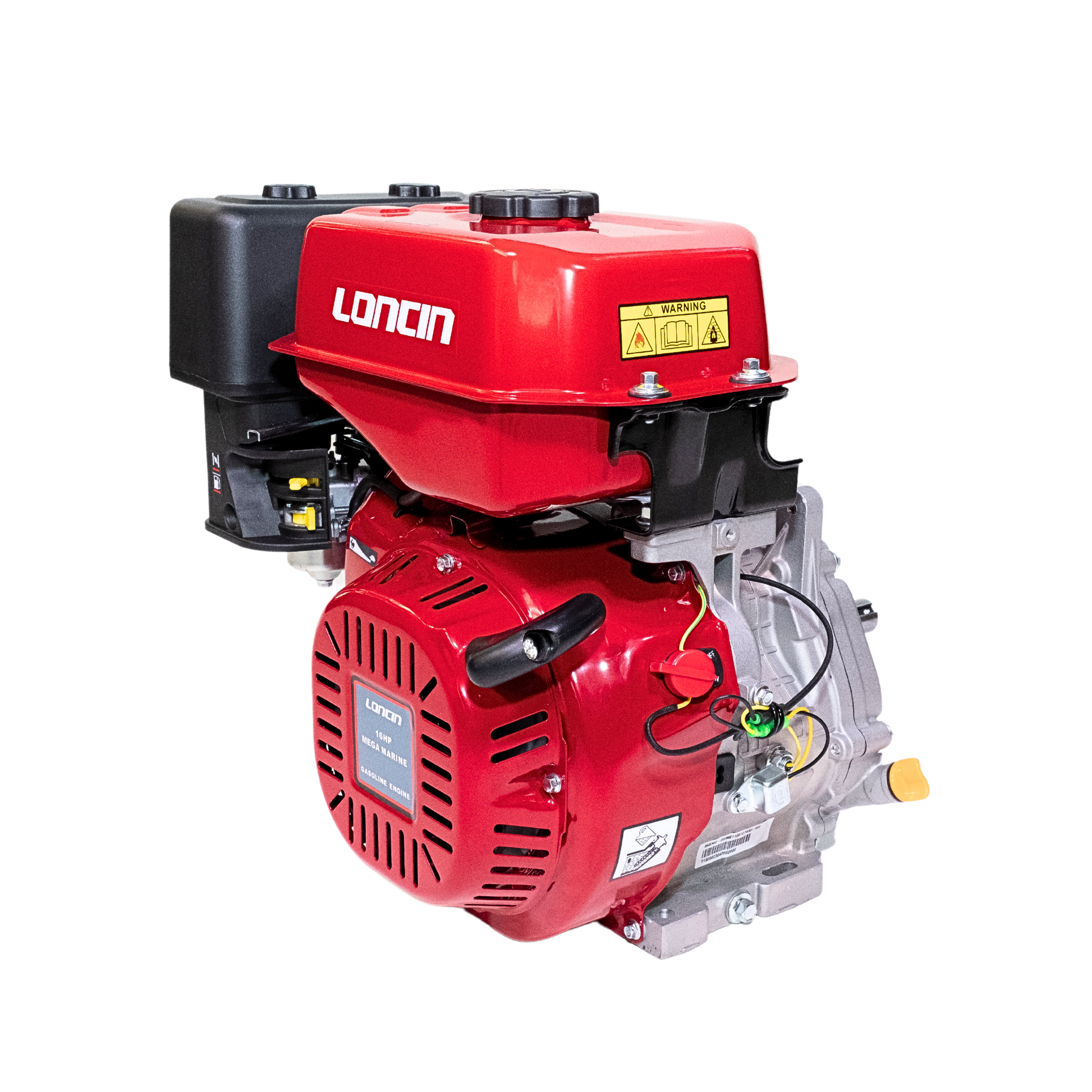

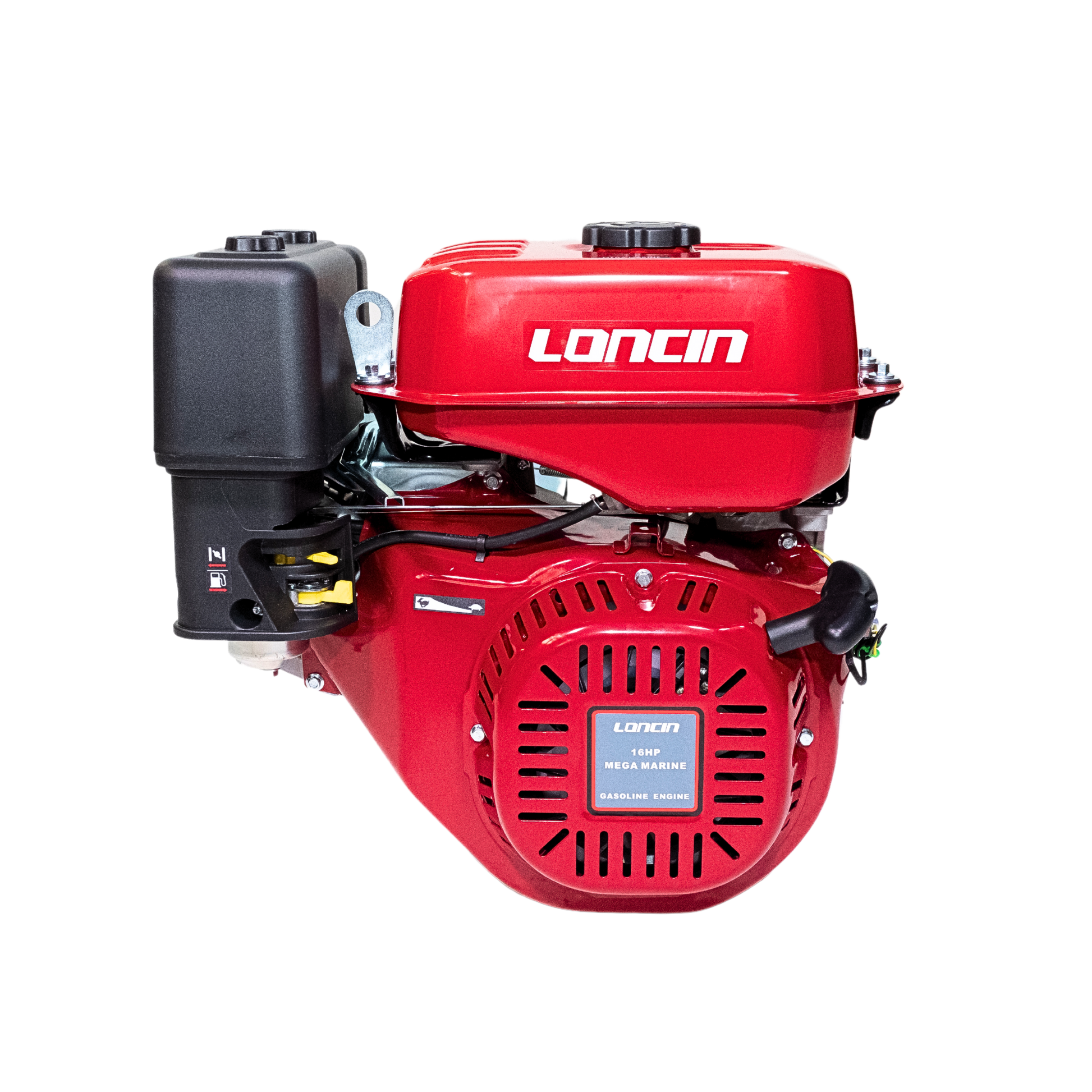

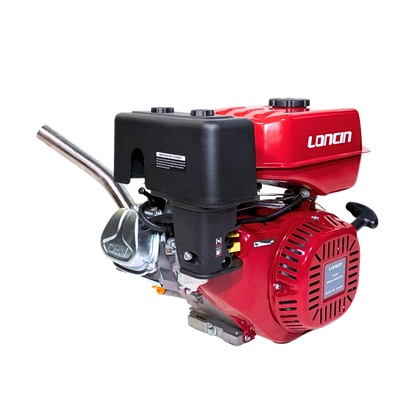

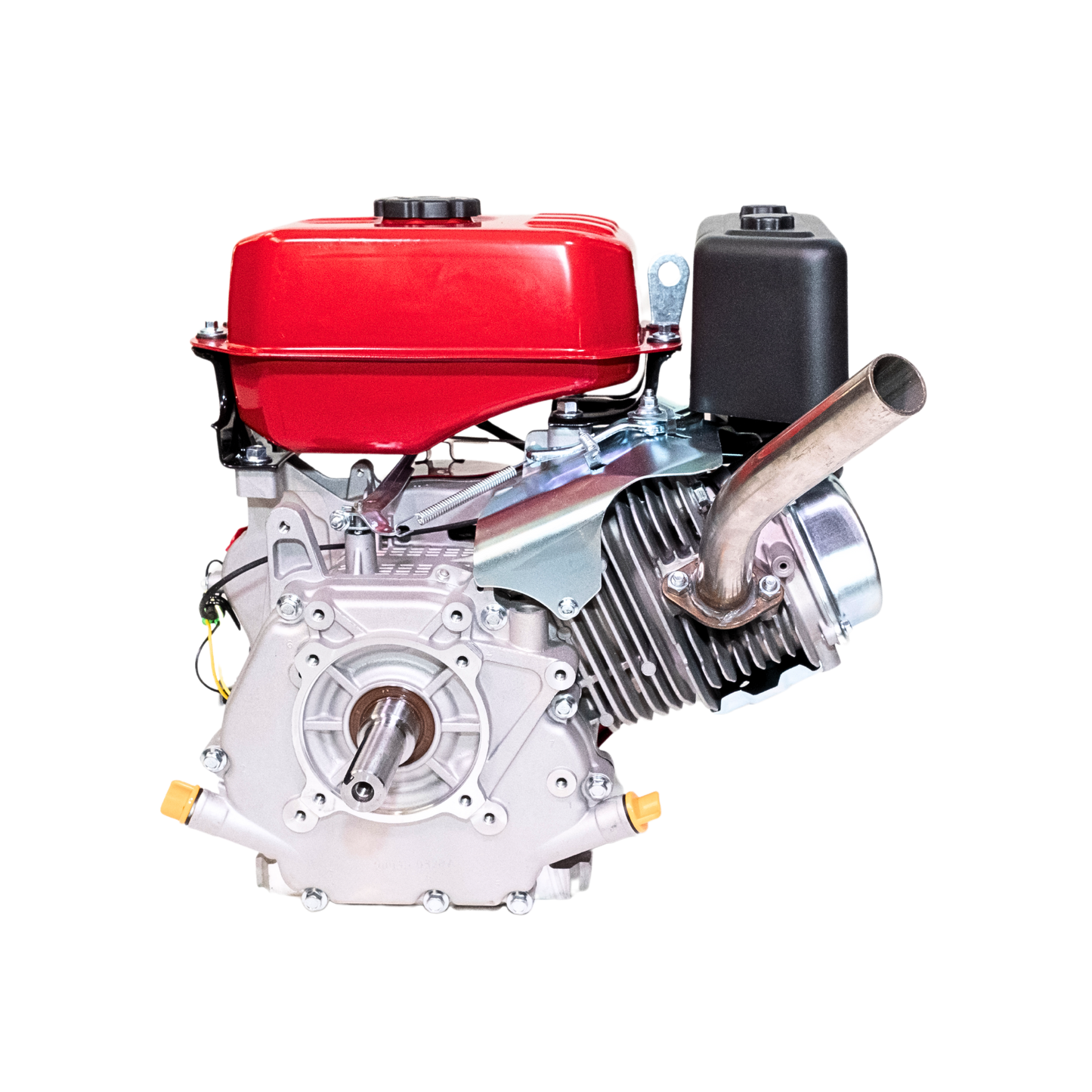

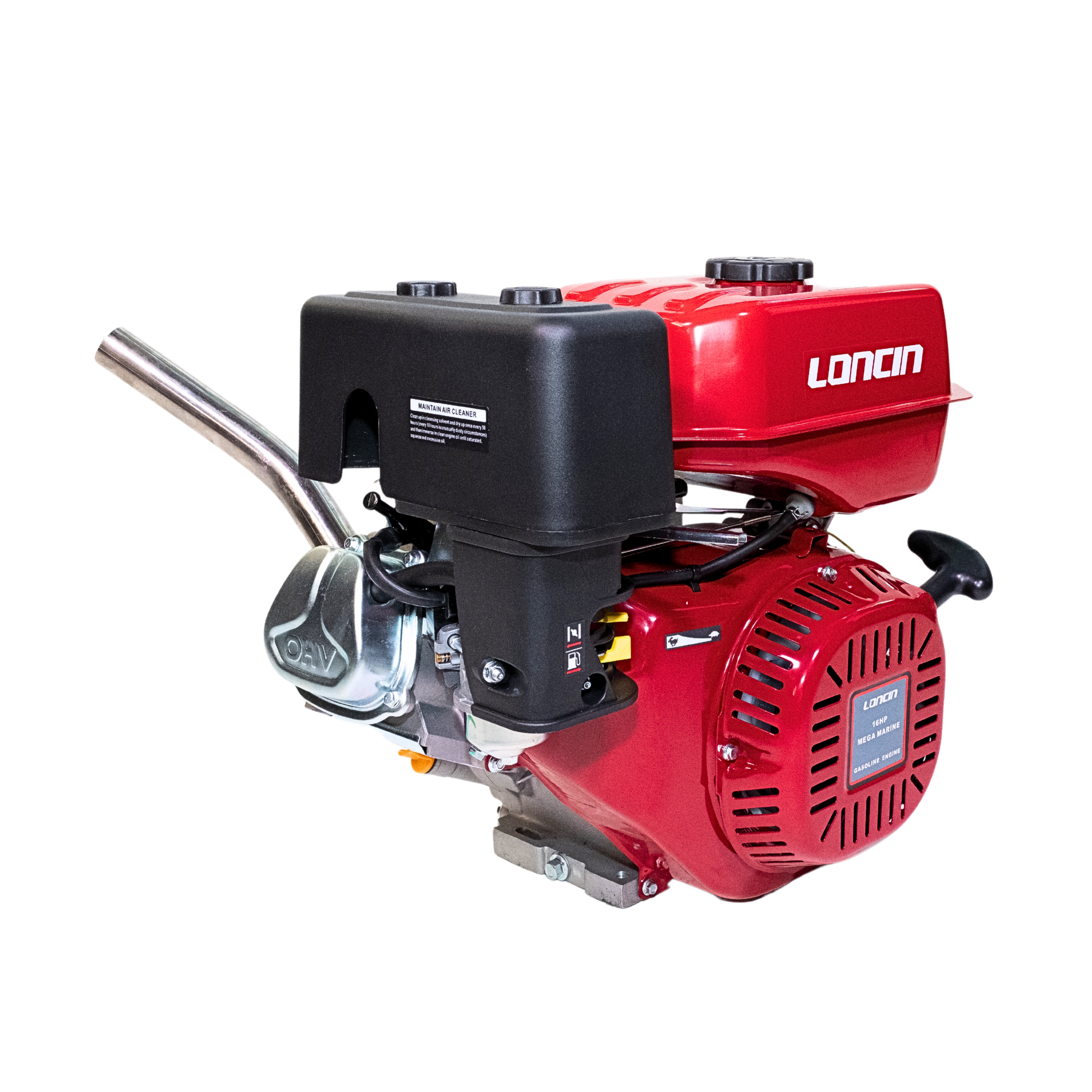

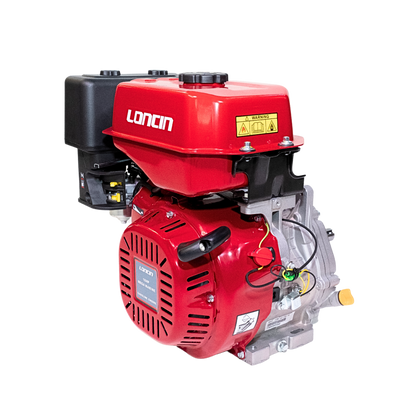

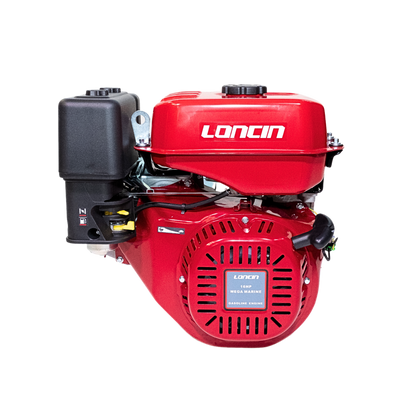

General Purpose Engines
K E Y F E A T U R E S
- Large capacity muffler design, ensures a lower noise level.
- Easy starting, starts within 3 attempts.
- With low oil alert function, auto-stop when oil level is low.
- Optimized combustion chamber and air vent, to improve burning efficiency.
- Lower fuel consumption and exhaust emission.
P R O D U C T S P E C I F I C A T I O N S
| Model |
LC190FM Mega Marine |
| Engine Type |
single cylinder, air-cooled, 4-stroke, OHV |
| Displacement (cc) |
430 |
| Net Power (kW/3600r/min) |
9.5 |
| Bore x Stroke (mm) |
90 x 66 |
| Net Torque (Nm/r/min) |
26.5 / 2500 |
| Starting System |
recoil |
| Lubrication System |
splash |
| Air Filter |
foam + paper element |
| Engine Oil Capacity (L) |
1.1 |
| Fuel Tank Capacity (L) |
6 |
| Net Weight (kg) |
32 |
| Product Dimension (mm) |
405 x 450 x 443 |
| Products Characteristics |
- Classic red design.
-
Bigger burning chamber with over 500 hrs. Long-time durability.
-
Well-matched air cleaner and carburetor to ensure higher output.
|
